Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

plastic processed : PVC

application : PIPE, Profile, Plates

Screw Design : Double-screw

twin screw type : Counter-rotating conical Twin-screw

Screw Material : 38CrMoALA

screw diameter (mm) : 65 mm

screw l/d ratio : 30:1

Screw Speed (rpm) : 60 rpm

place of origin : Shandong, China

brand name : DEERMA

voltage : 380V 50HZ 3Phase (Customized)

dimension(l*w*h) : About 26m*2m*2m

power (kw) : 180

warranty : 1 Year

key selling points : High Productivity

video outgoing-inspection : Provided

core components : Bearing, Pump, Gear, Engine

machinery test report : Provided

Name : pvc pipe machine / pvc pipe making machine /extrusion machine

Raw Material : PVC Resin , CACO3, Additive

Production speed : 8-15m/min

Output Capacity : 180-250 kg/ hr

PVC Pipe : 16-63mm & 75-160mm

Total installed /Consumption power : 75.85kw / 60kw

Motor Power : 37 KW SIEMENS

Inverter : ABB

Temperature meter : OMRON

Automatic Grade : Automatic

Condition : New

Showroom Location : Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa

Applicable Industries : hotels, Farms, Restaurant, Home Use, Food Shop

Warranty of core components : 1 Year

Weight : 10 KG

Price : CN¥180,375.00/sets >=1 sets

Contact Now

pvc pipe machine / pvc pipe making machine / pvc pipe extrusion machine

Product Description

Production Process for pvc pipe plastic machine

  1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
  2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
  3. Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

pvc pipe plastic machine Characteristic

Pipe range

20-63mm single

20-63mm dual

75-160mm

110-315mm

315-630mm

Extruder

SJZ51/105

SJZ65/132

SJZ80/156

SJZ80/156

SJZ92/188

Extruder power

18.5kw

37kw

37kw

55kw

110kw

Extrusion capacity

120kg/h

250kg/h

250kg/h

360kg/h

800kg/h

Max. Production speed

12m/min

10m/min

6 m/min

3 m/min

1.2m/min

PVC PIPE MACHINE PICTURES

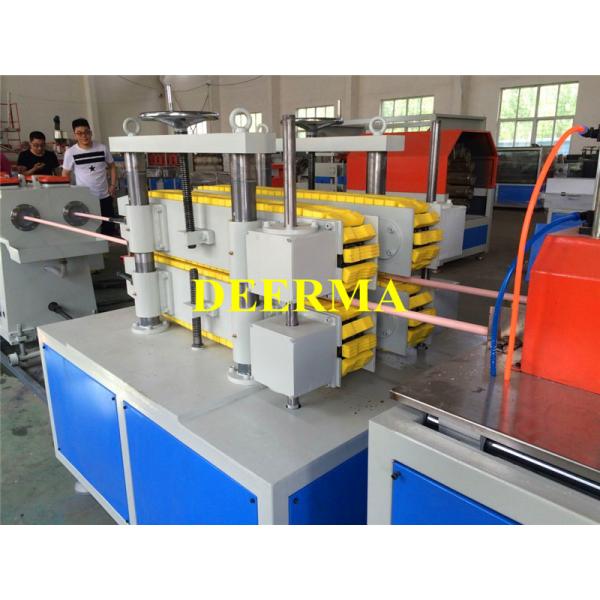

1. SJSZ-65/132 PVC PIPE MACHINE (WHOLE LINE)

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

1. SJSZ-65/132 conical twin screw extruder equipped with Automatic Spring Loader

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

2. Die head and Mould

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

3. Vacuum calibration unit

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

4.Haul- off unit

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

5.Cutter unit

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Company Information

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

Additive Raw Material PVC Pipe Extrusion Machine for Profile Production

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4
